Product Description

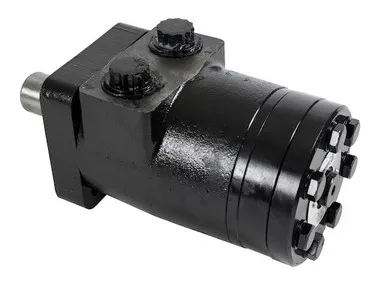

Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders. The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate. Choose from a wide range of motors depending on your needs for flow rates, torque and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.
SPECIFICATIONS
- Compares To – 101-1755-009
- Flow (Continuous) – 15 GPM
- Input Mount Type – 4 Bolt
- Material – Cast Iron
- Maximum Case Pressure (Without Case Drain) – 1500 PSI
- Maximum Speed (Continuous) – 585 RPM
- Pilot Diameter – 1.75 “
- Shaft Keyway – 0.25 “
- Shaft Type – Straight
- Displacement – 7.3 in.²
- Flow (Intermittent) – 18 GPM
- Torque Rating (Continuous) – 1100 Inch Pound
- Torque Rating (Intermittent) – 1510 Inch Pound
- Port Size – 1/2 NPT
- Shaft Size – 1.00 “
- Maximum Speed at Continuous Flow – 585 RPM
- Maximum Speed at Intermittent Flow – 702 RPM
- Minimum Starting Torque (Continuous Pressure) – 1100 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) – 1510 Inch Pound
- Pressure Δ Bar (Continuous) – 1800 PSI
- Pressure Δ Bar (Intermittent) – 2400 PSI
